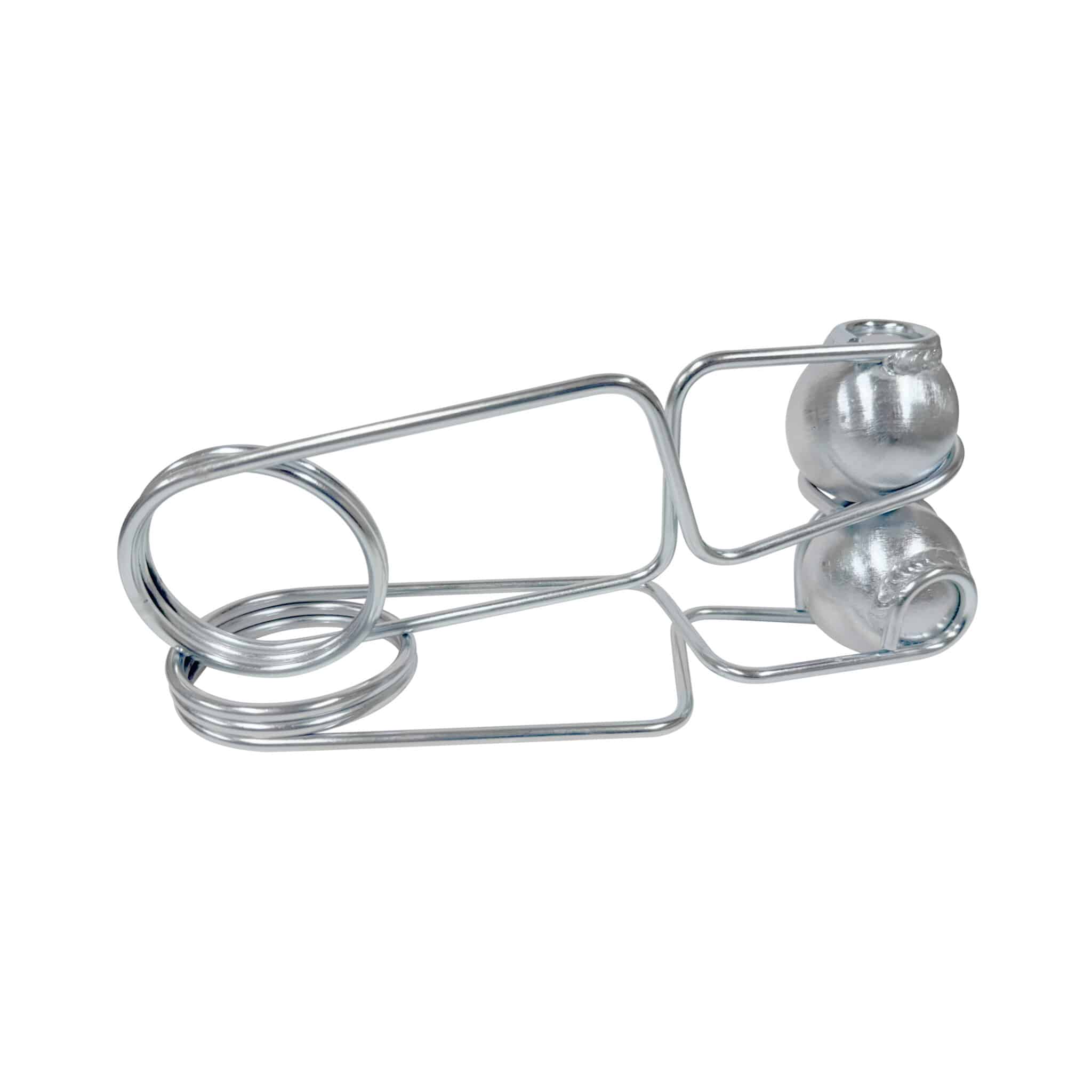

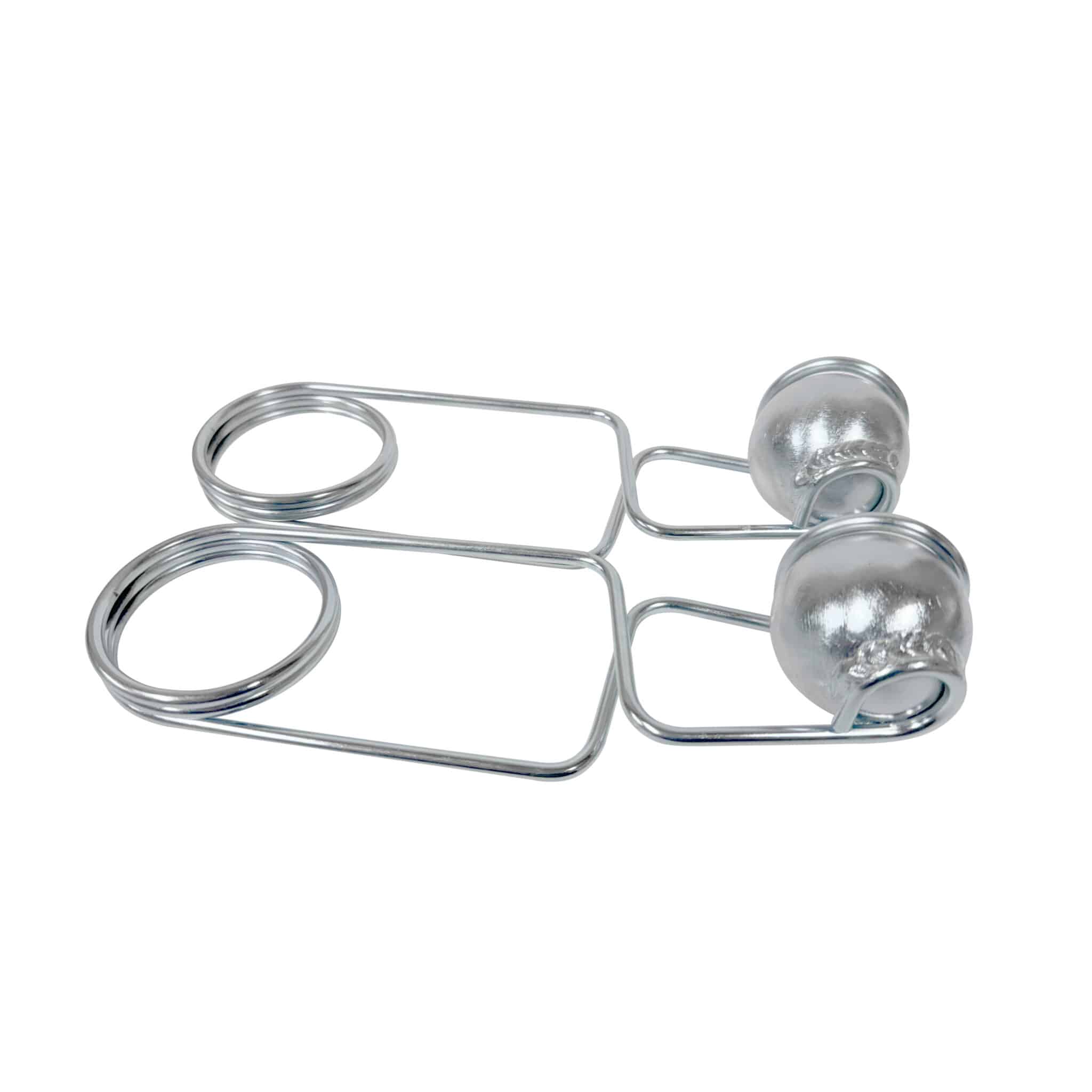

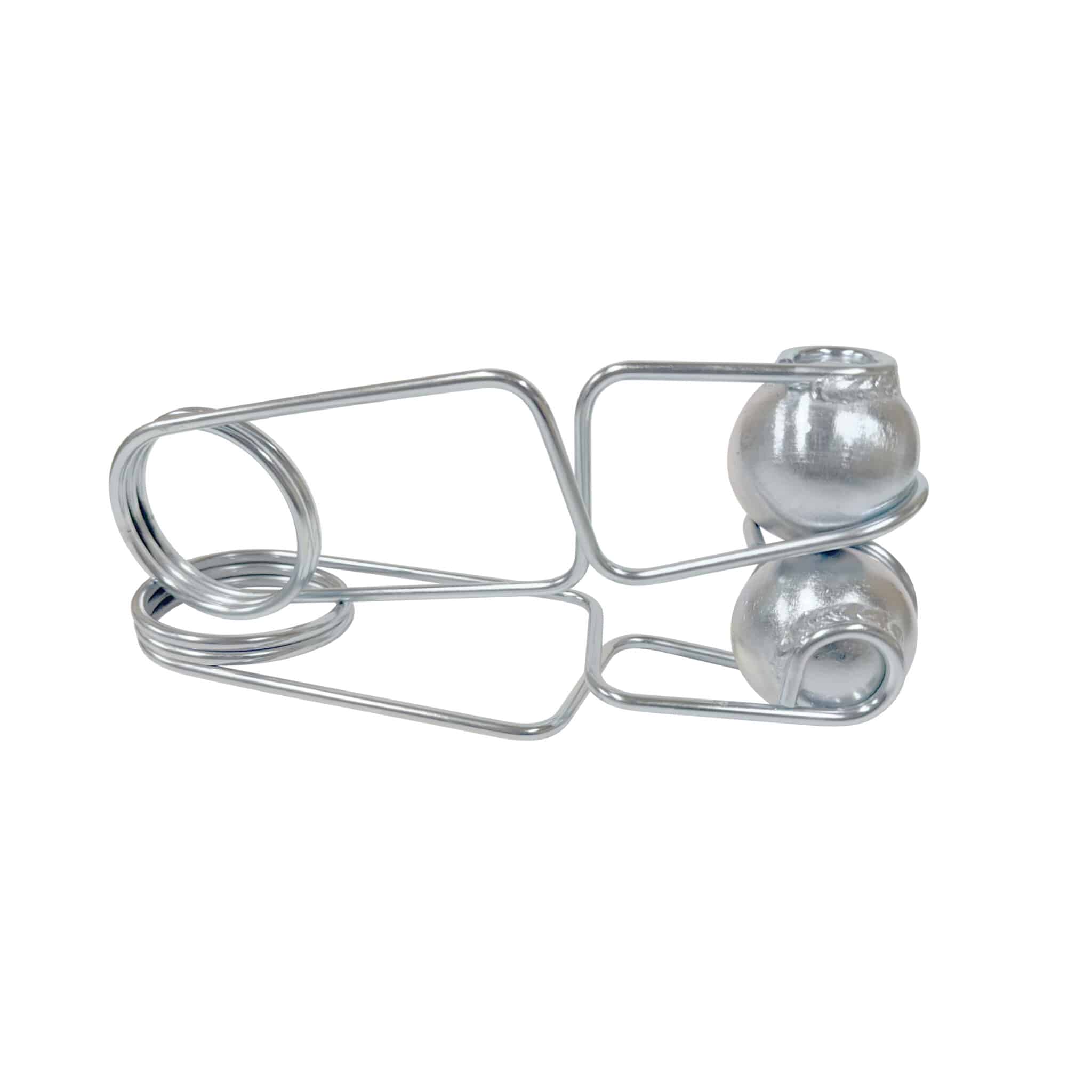

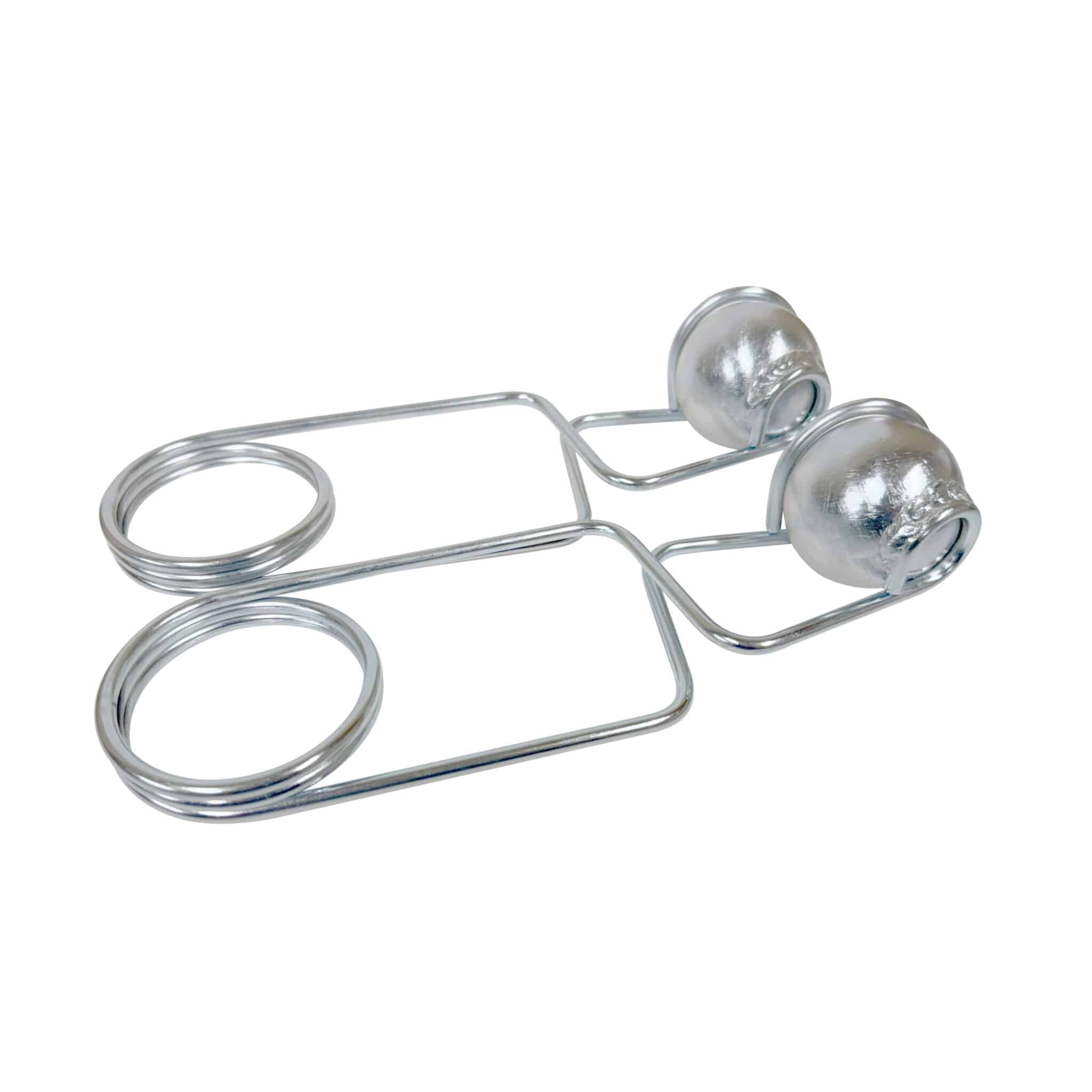

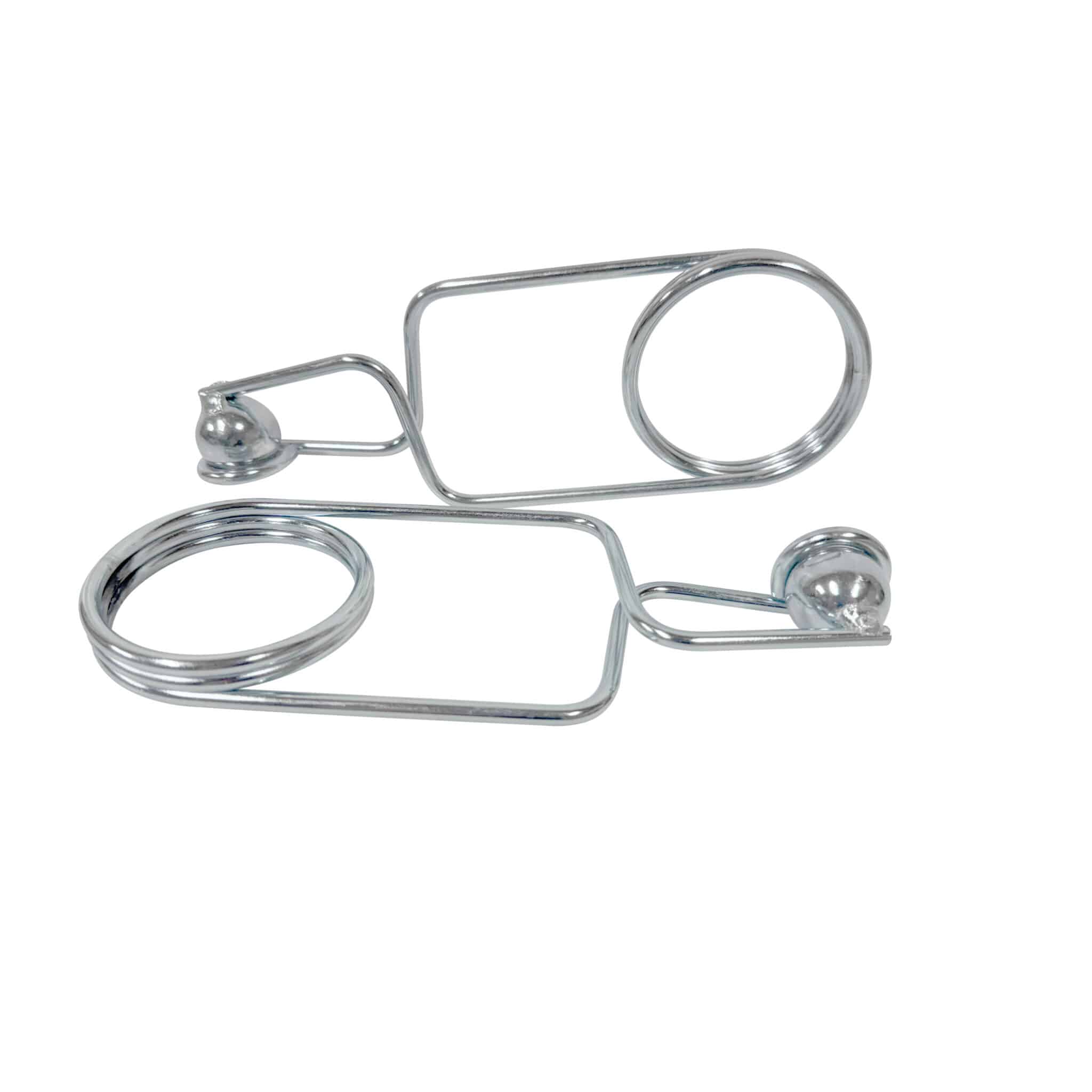

2-hole Clamp

No one likes to fumble around with tricky 2-hole pins when trying to make a quick fit-up, that’s why we designed our 2-hole clamps! Our clamps don’t require screwing a pin apart and putting it back together. Simply squeeze the clamp to separate the ball from the clamp, slip over the flange and release. It’s a tool that has been made way too complicated for far too long, but lucky for you we are innovators!

Details:

• Flange sizes:
  • Small:

• Minimum: N/A

• Maximum (Limited to flanges with hole sizes under 1”):
  • 8” #150
  • 6” #300
  • 3” #400
  • 3” #600
  • ¾” #900
• Large:
• Minimum:
  • With the ball on the front face:
    • 8” #150
  • With the ball on the back face:
    • 6” #150 Slip On Flange
    • Different flange types like weld neck, etc might vary this.
• Maximum:
  • Flanges with hole sizes smaller than 2”
  • Flanges with face thicknesses of 3.5” or less
  • 36” #150
  • 30” #300
  • 26” #400
  • 20” #600

• Zinc plated for durability and longevity
• Squeeze to open
• Large range of compatible flanges
